Product Details

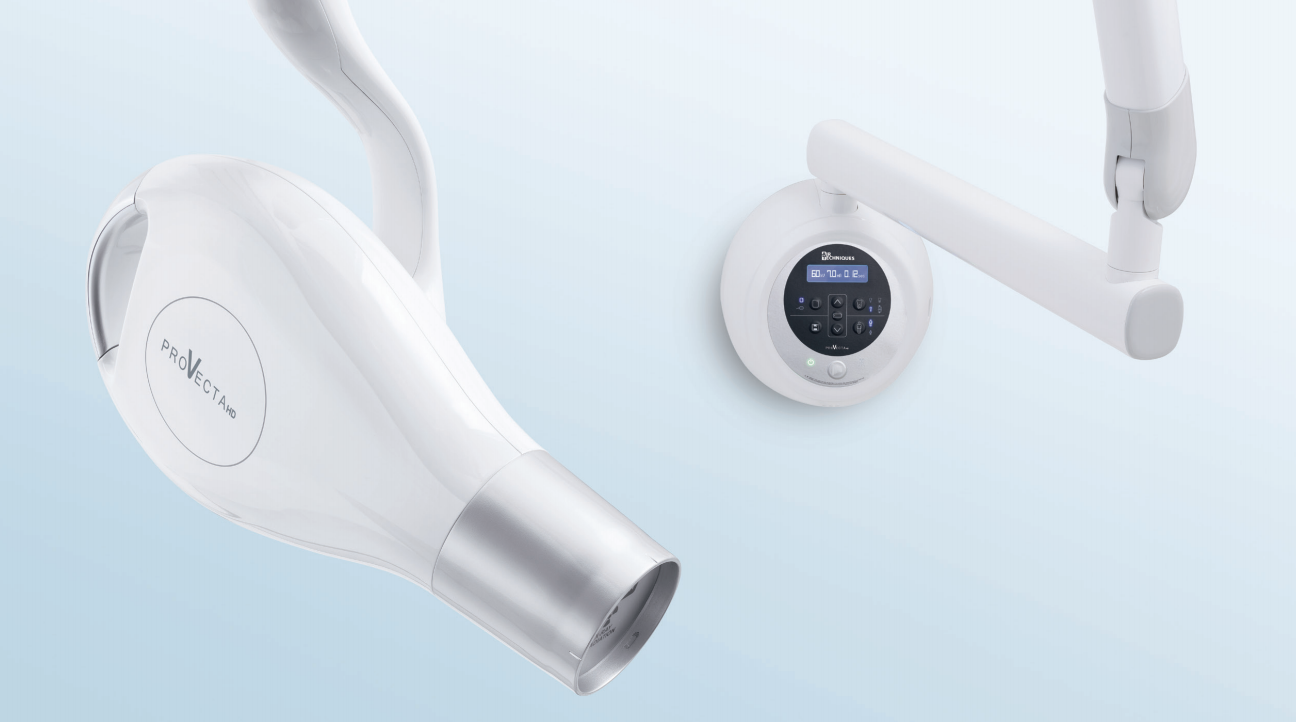

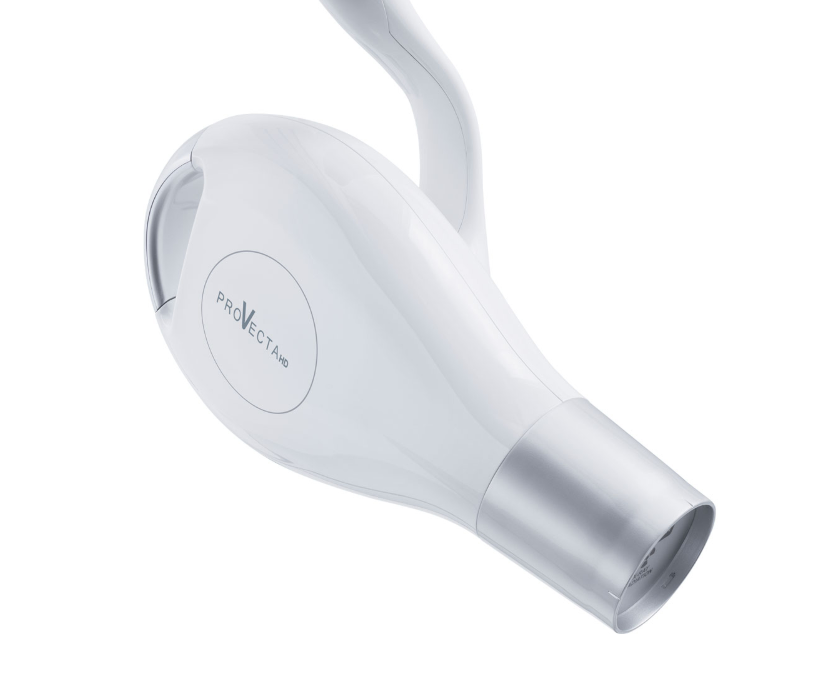

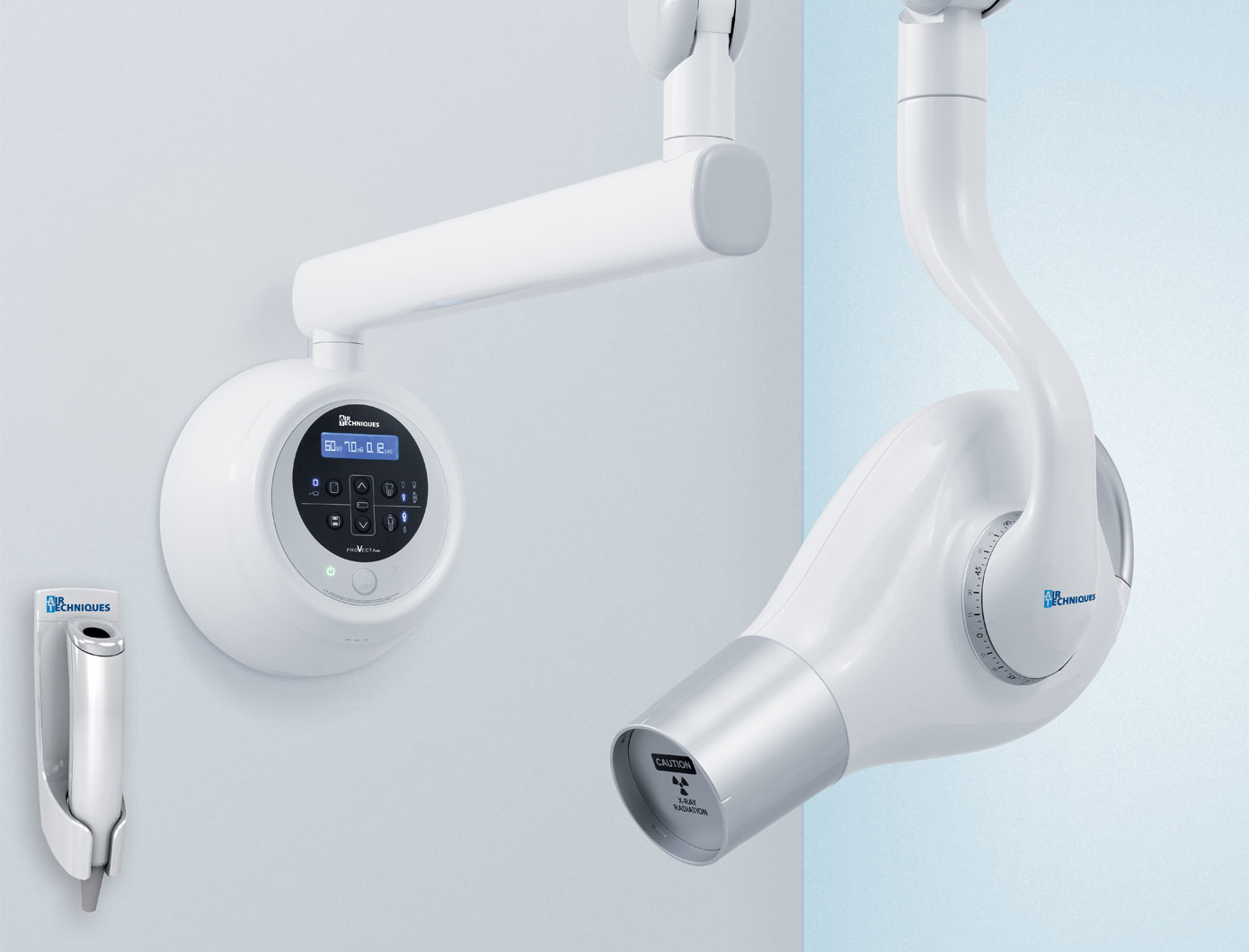

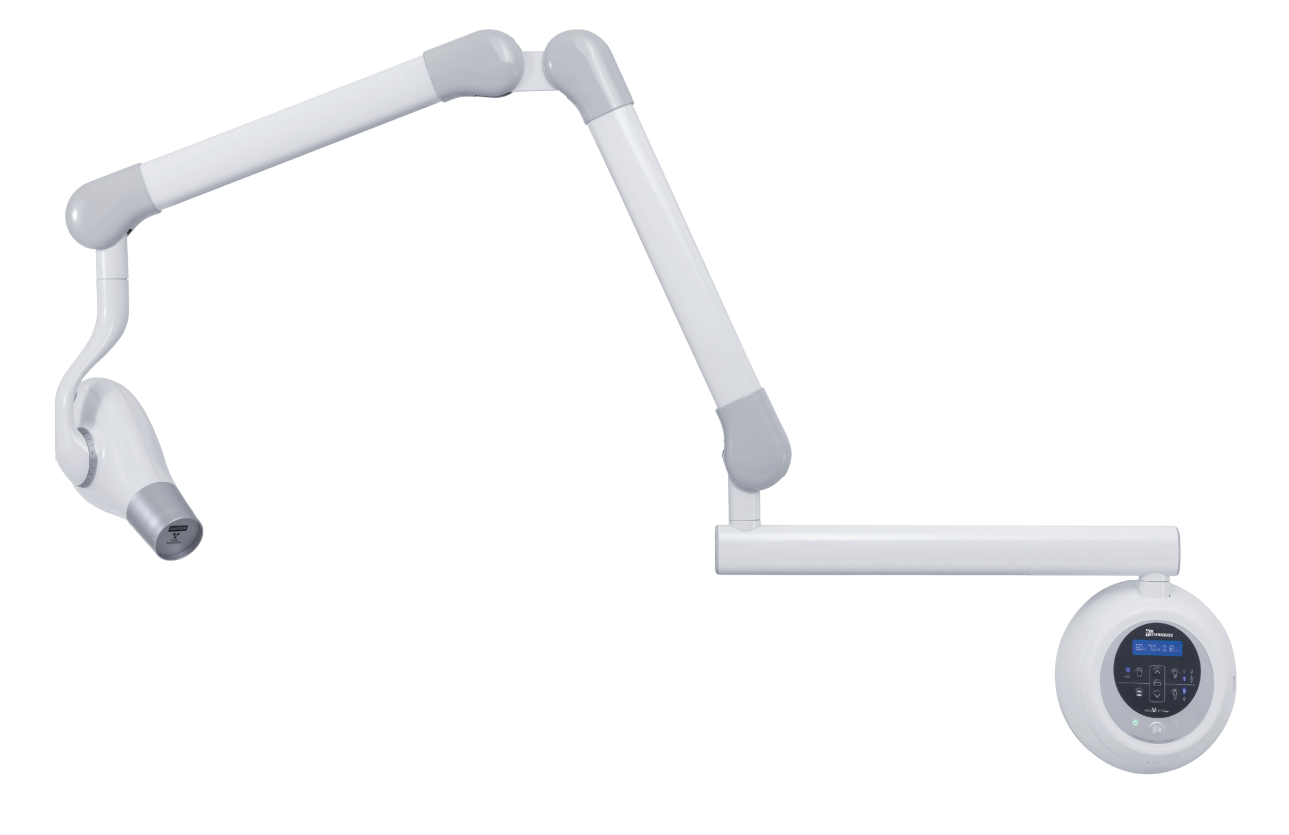

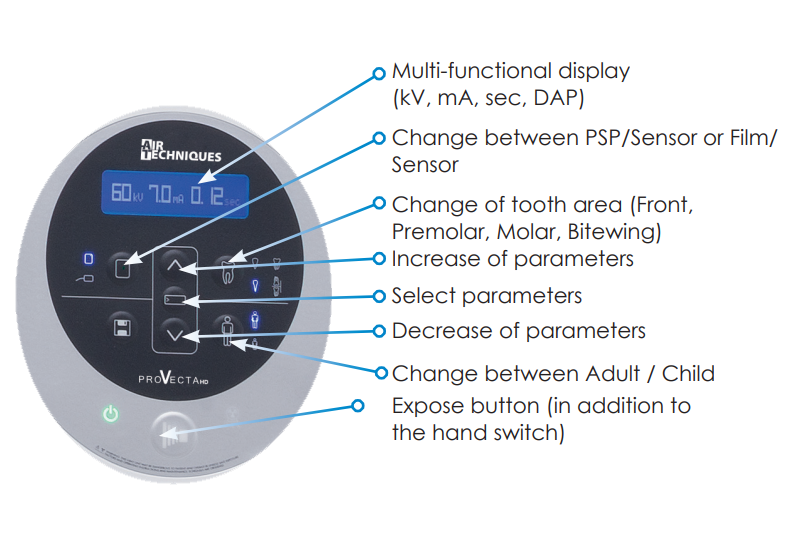

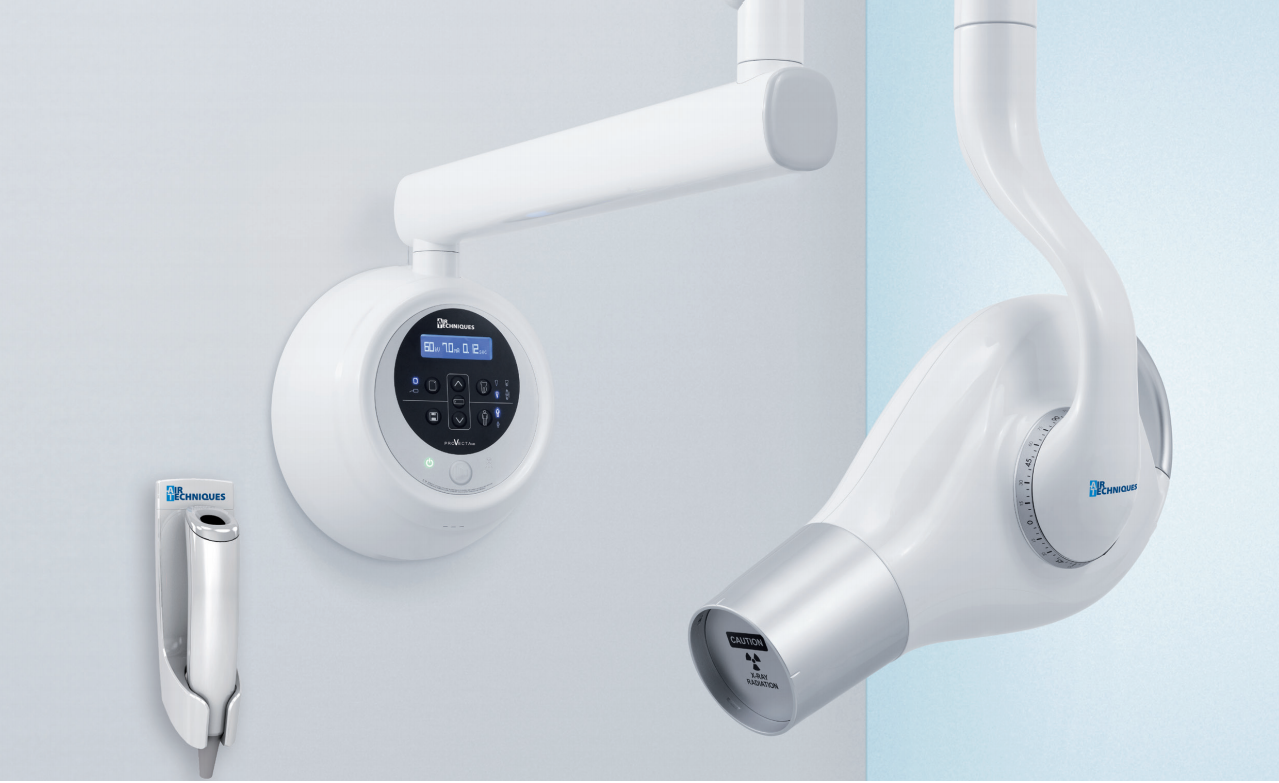

ProVecta HD Intraoral X-Ray The ProVecta HD Intraoral X-ray offers a modern, slim design to fit the modern operatory. PERFECT IN FUNCTION & DESIGN • Generator head handle allows precise positioning that stays in place • Choose from short (66″), medium (72″) and long (84″) extended arm lengths • Right-angle/parallel technology for precise alignment • Adjustable mA and kV levels • Optional rectangular radiation field collimator • DC technology allows constant radiation levels to ensure reliable image quality • Factory programmed dosage specifically set for each view when using ScanX® flexible phosphor plates (PSPs) • Space-saving design - This state-of-the-art unit's small footprint, coupled with its right-angle/parallel technology, allows it to work its magic in less space than lessadvanced units. • High efficiency control panel for faster workflow and fewer errors - User-friendly display features intuitive icons for quick and accurate selection of tooth area (front, premolar, molar, bitewing), size of patient (adult/child), type of radiograph remotely using Cat5 cable. Can be single-stud-mounted or 16" -on-center-mounted at no extra cost. The ProVecta HD works with wired sensors, cordless flexible phosphor plates (PSPs) and film.  Advanced ergonomics for advanced comfort Our special generator head handle not only allows precise positioning, it makes the process more comfortable for both the clinician and the patient.  3 Extended arm lengths Choose from short (66"), medium (72") and long (84")  DC tube to minimize radiation dosage Reduces the patient dose by more than 25% in comparison to conventional AC units, ensuring greater safety for your patients and staff. Specifications Part Number A6350-15S A6350-24S A6350-33S A6350-15D A6350-24D A6350-33D A6336 - Single Stud Mounting Plate A6330 - Dual Stud Mounting Plate Power input 100-120V Power rating (W) 500 Tube voltage (kVp) 60-70 Tube current (mA) 4-7 Tube length (in) 8” (12” Optional) Exposure time (sec.) 0.04 - 2 Focal spot size (mm) 0.4 (IEC 60336) Total filtration (mm) Min. 2.0 Al Weight (lbs) 55/56/59 lbs (short/medium/long arm) Storage height (in) 46“ Extended arm length (in) 66“, 72“, and 84“ Package Includes Mounting Plate, Complete X-ray with connections(3-wire, 2-wire, RJ11 and RJ45)
