Product Details

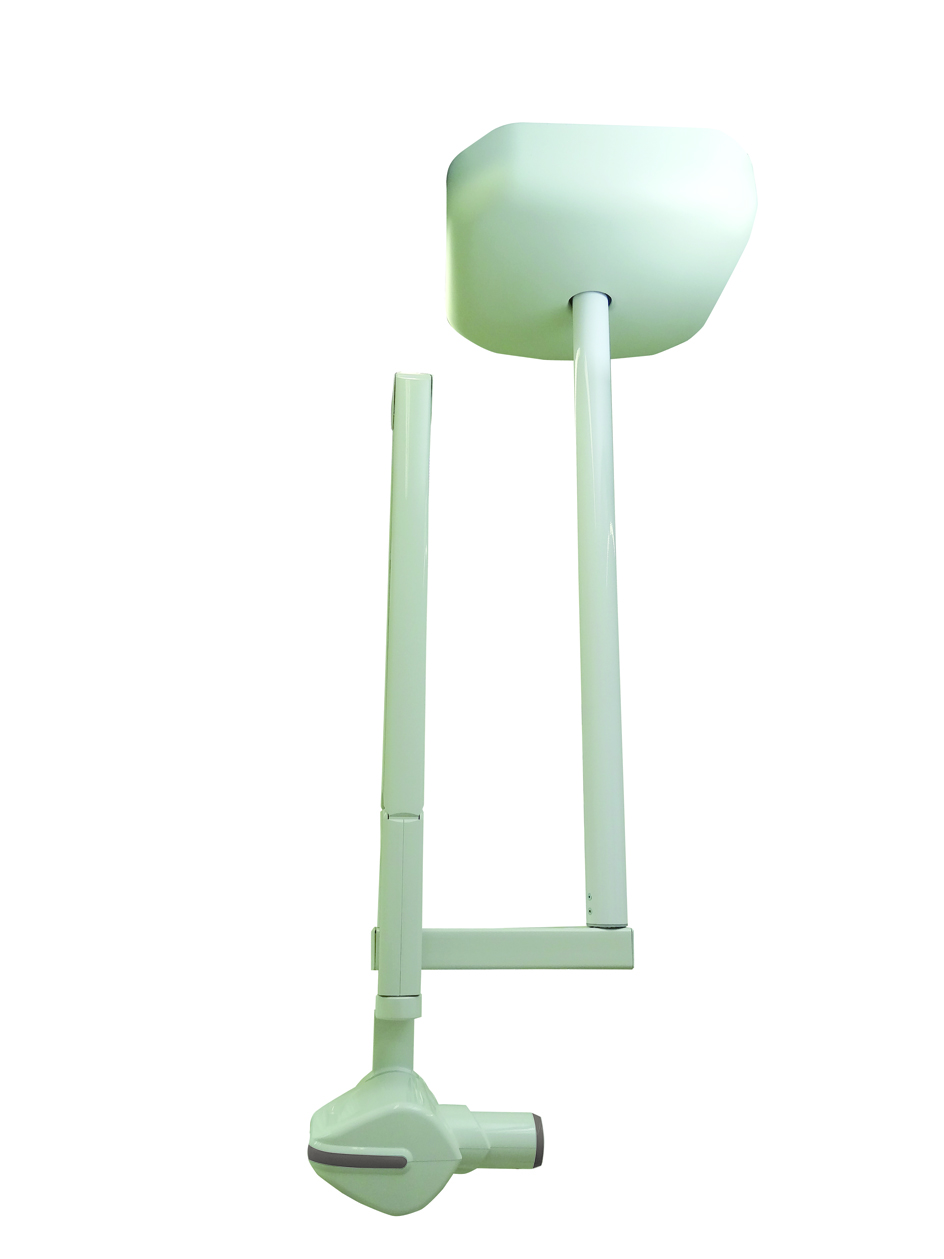

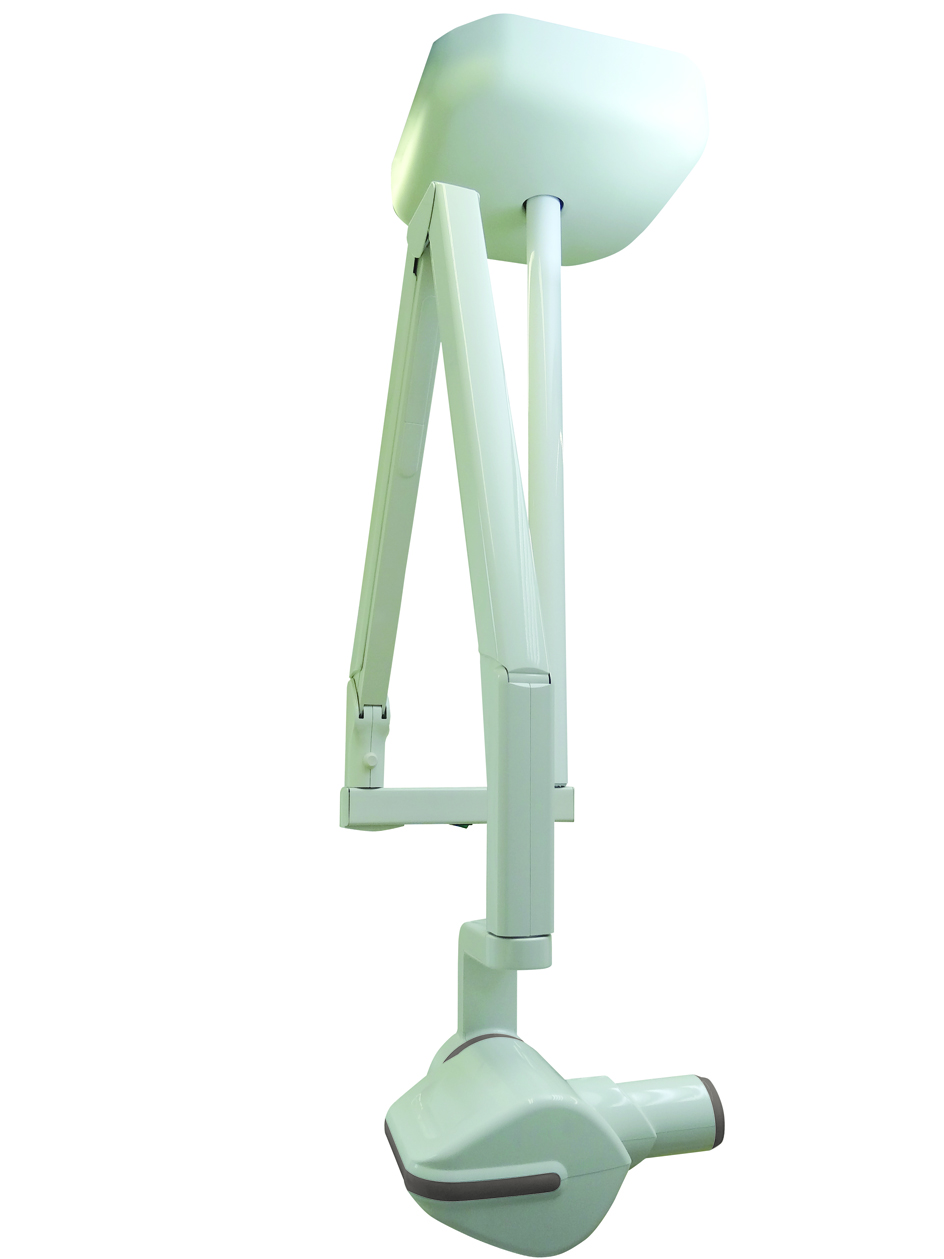

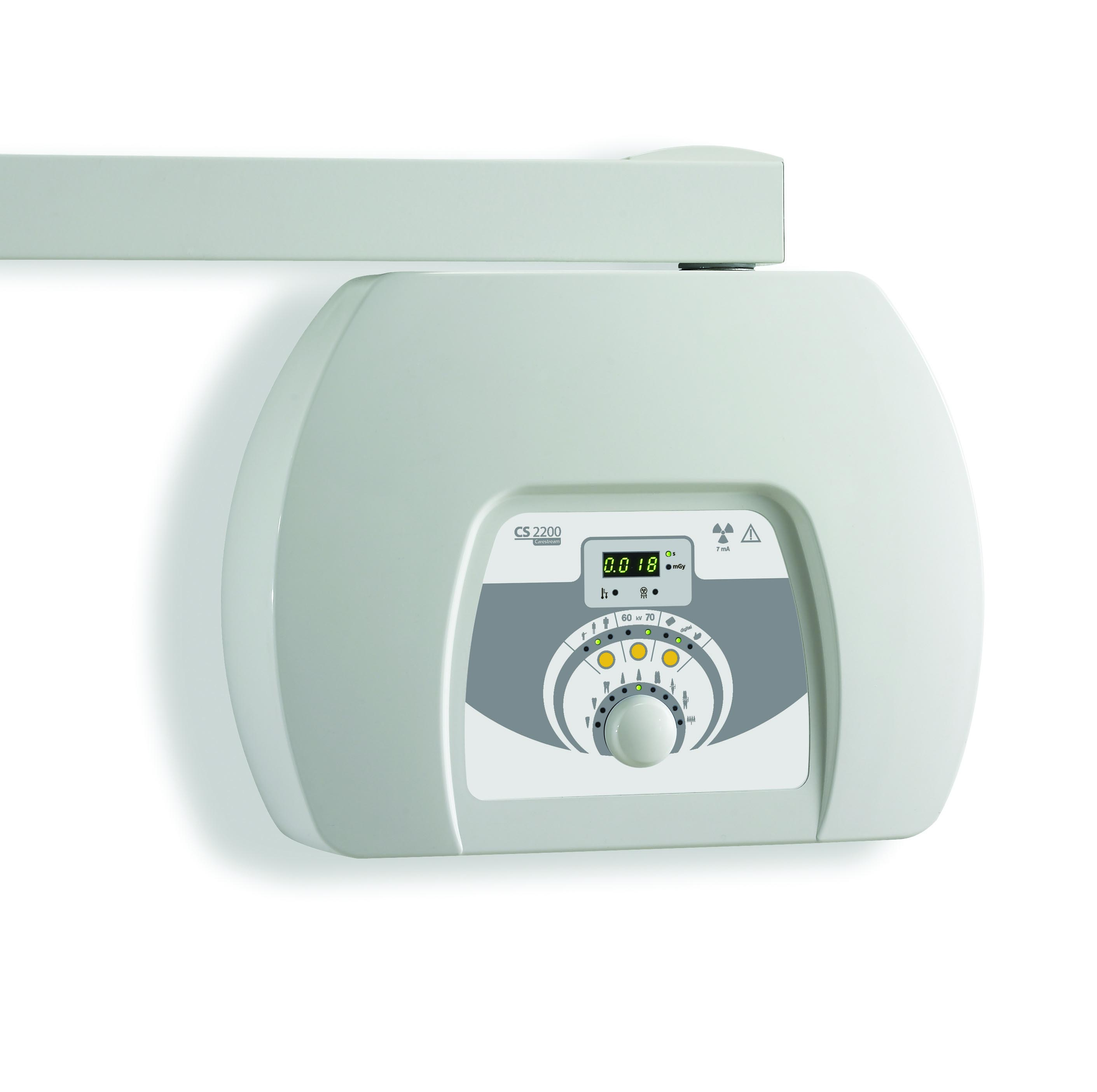

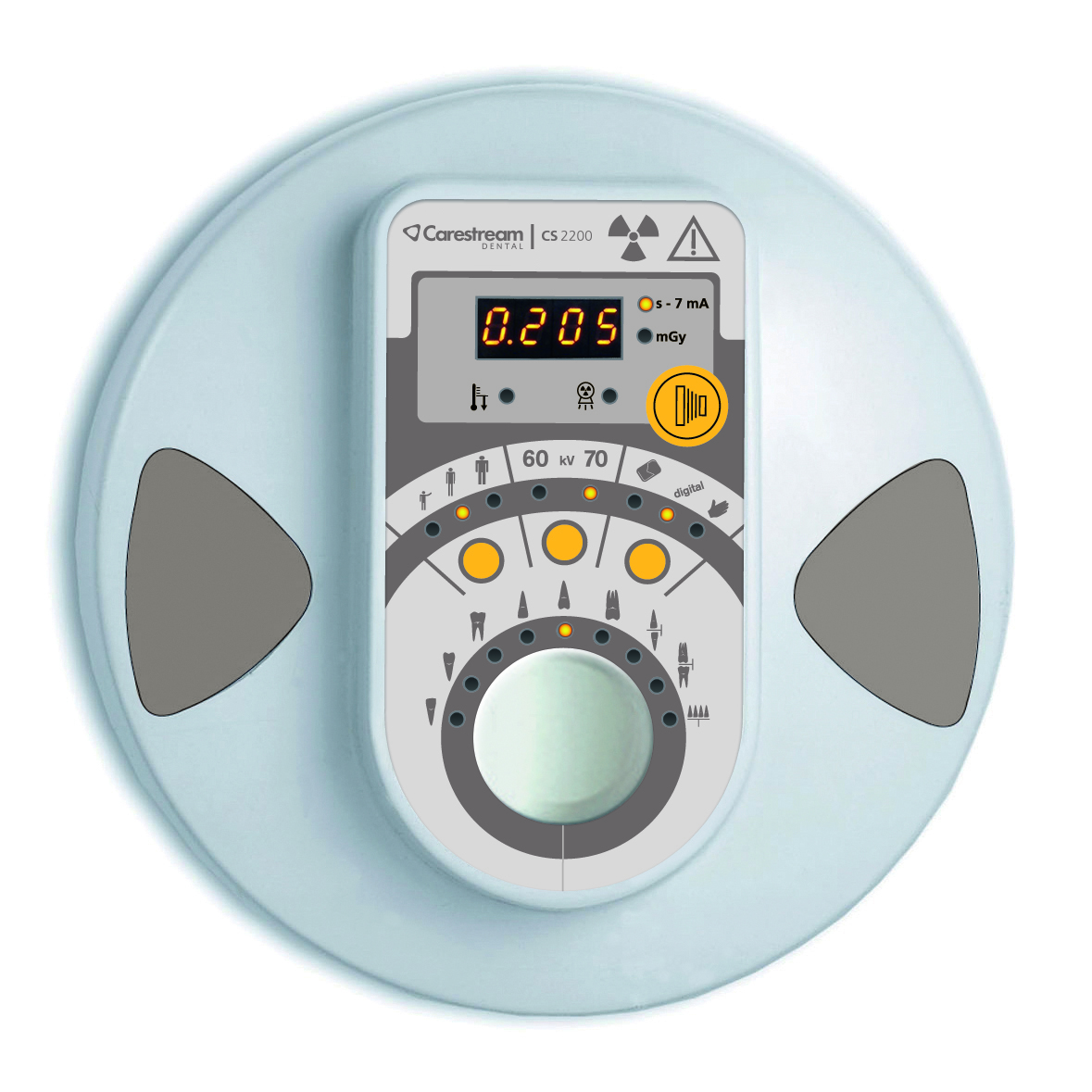

Superior digital image quality and accurate diagnoses in any environment. Features and benefits • Maximum image quality with minimum exposure • Total control on tube voltage (60 or 70 kV) for high contrasted or high latitude images • Intuitive and easy-to-use • Ideal for digital sensors, analog films or phosphor plates • High frequency for better patient safety - reduces the radiation dose up to 25% in comparison with a standard generator • Dose display after each exposure • Multiple configurations available, a mobile or fixed column mount, as well as wall mounting option fully compatible with the Irix installed base Technical Specifications Power Supply : 230-240 V X-ray Generator : Very high frequency-DC (300khz) Tube Voltage : 60 kV, 70 kV Tube Current : 7 mA Tube Focal Spot : 0.07 cm IEC Focal Spot/Skin Distance : 20 cm
