Product Details

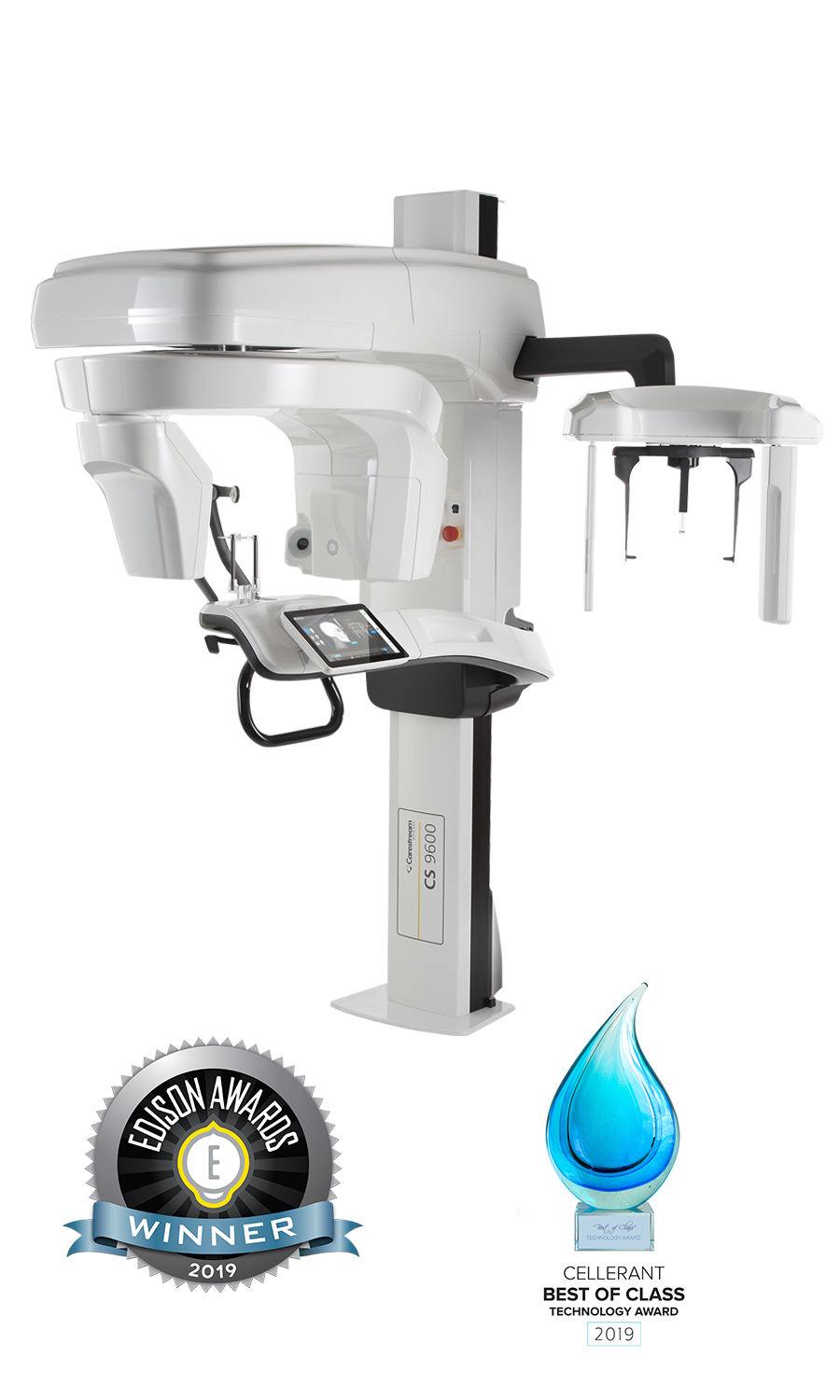

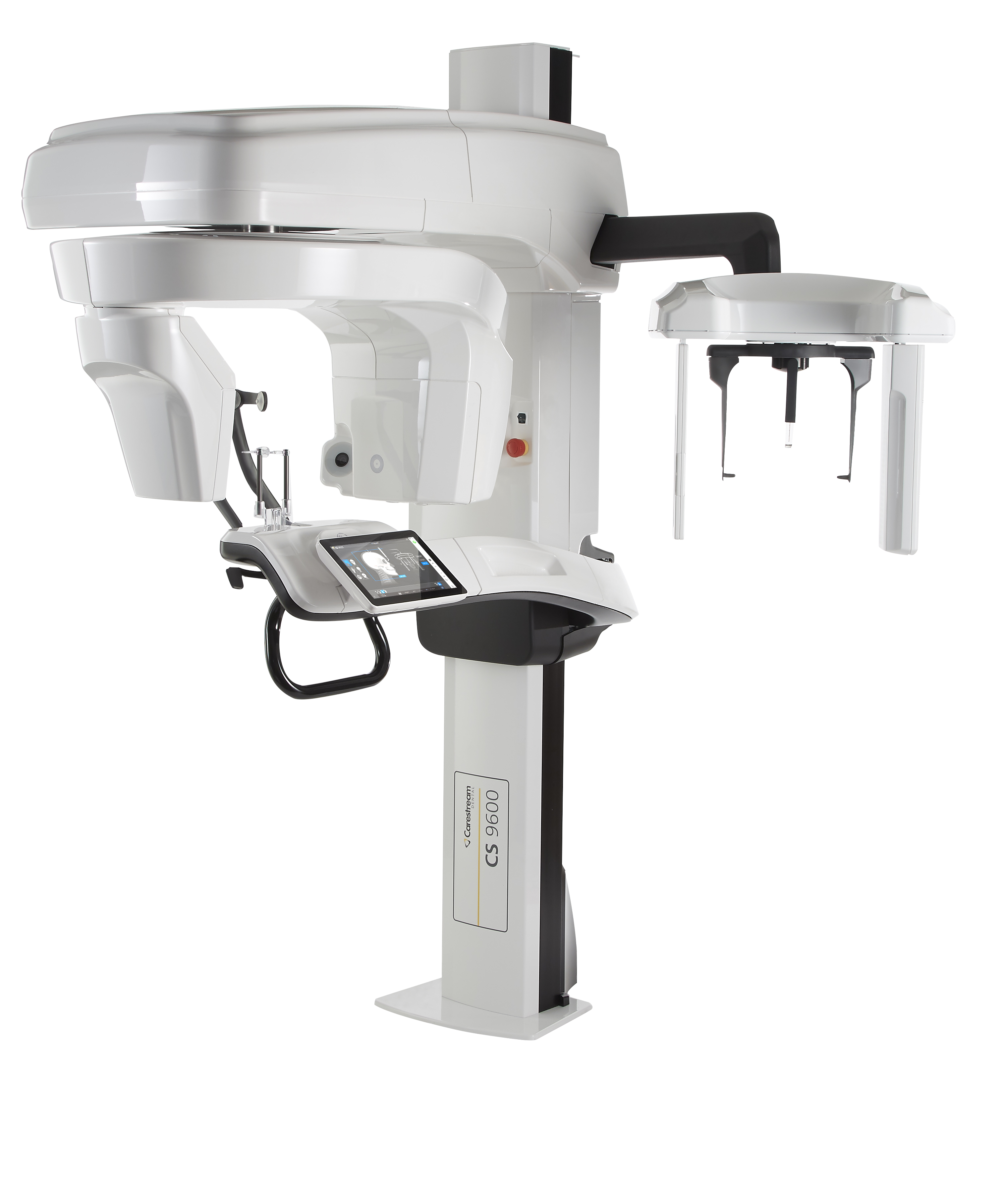

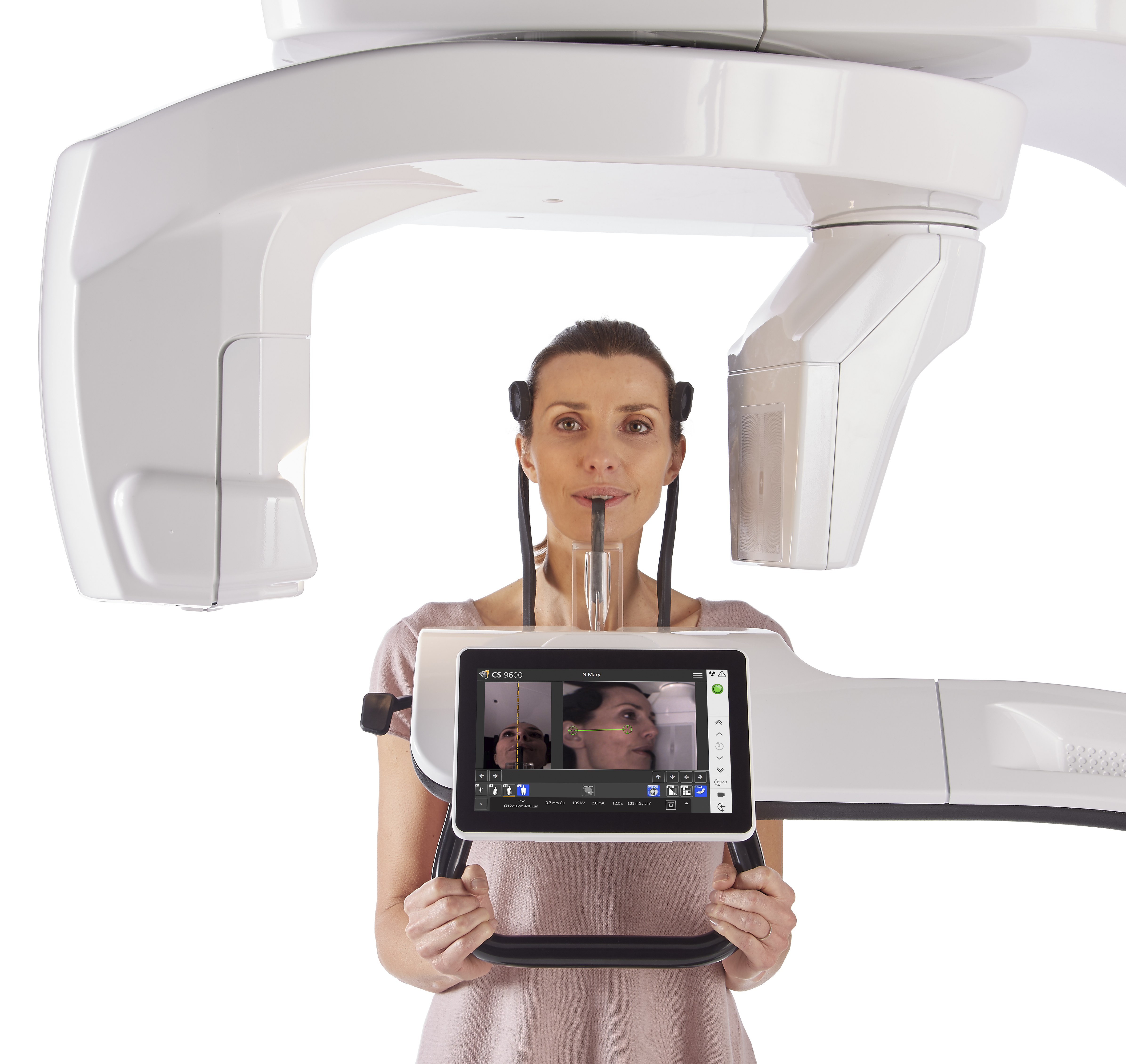

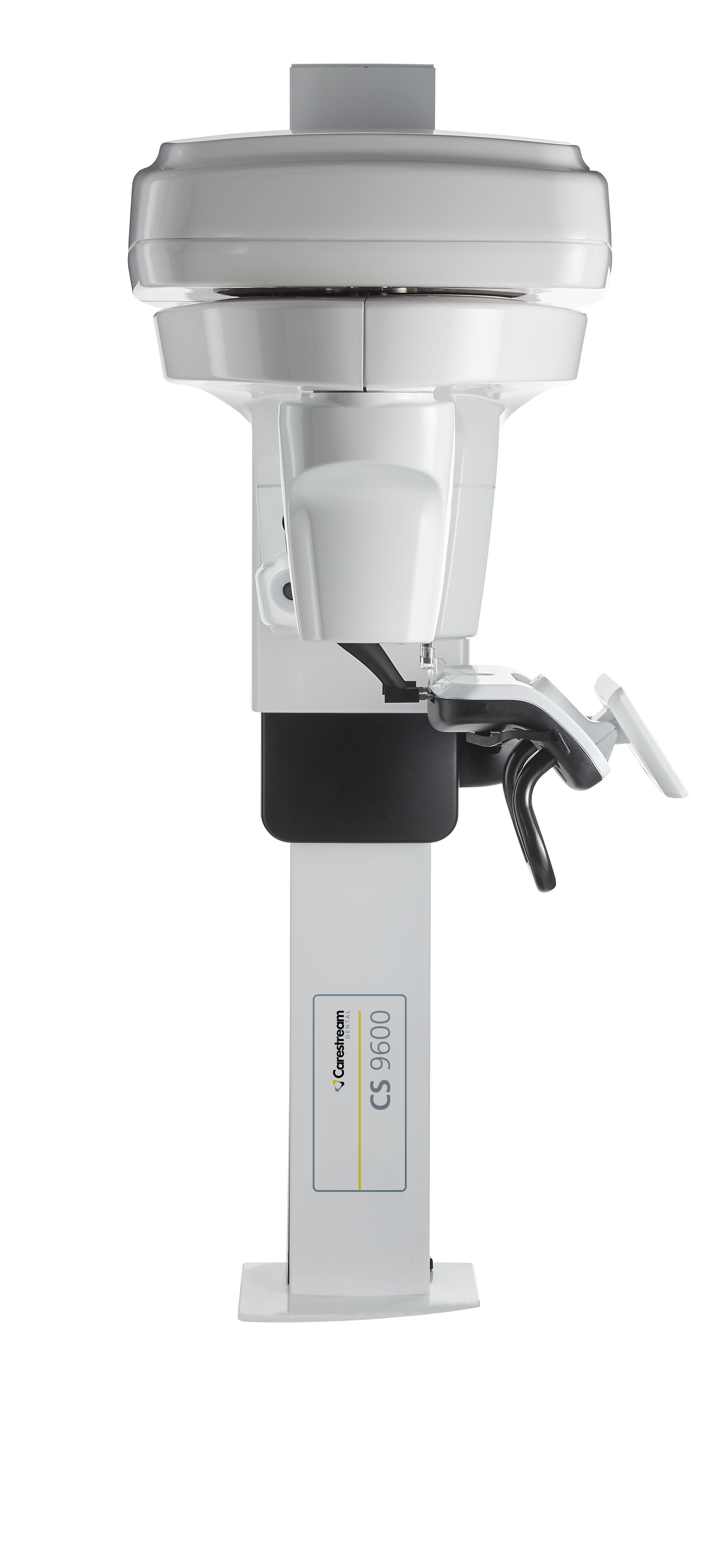

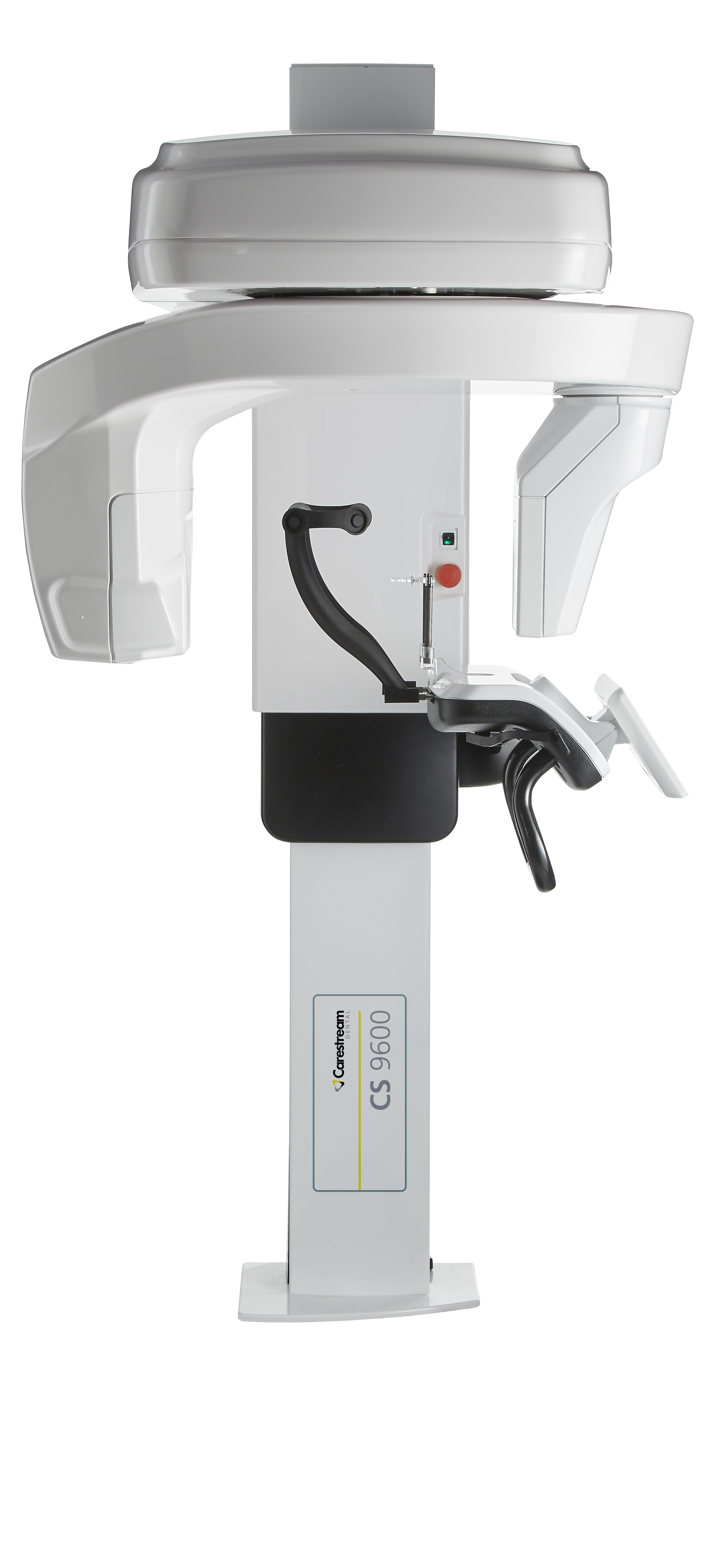

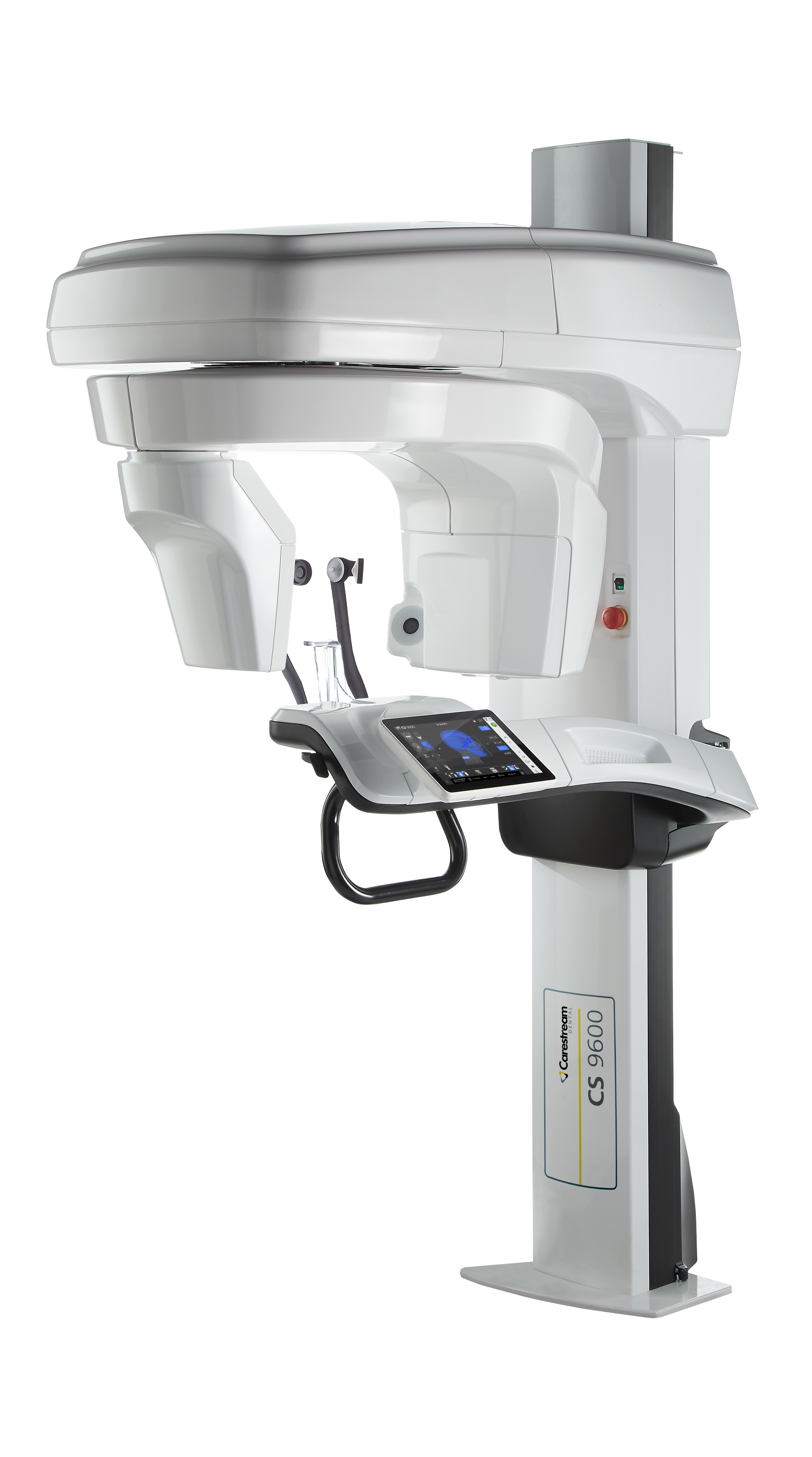

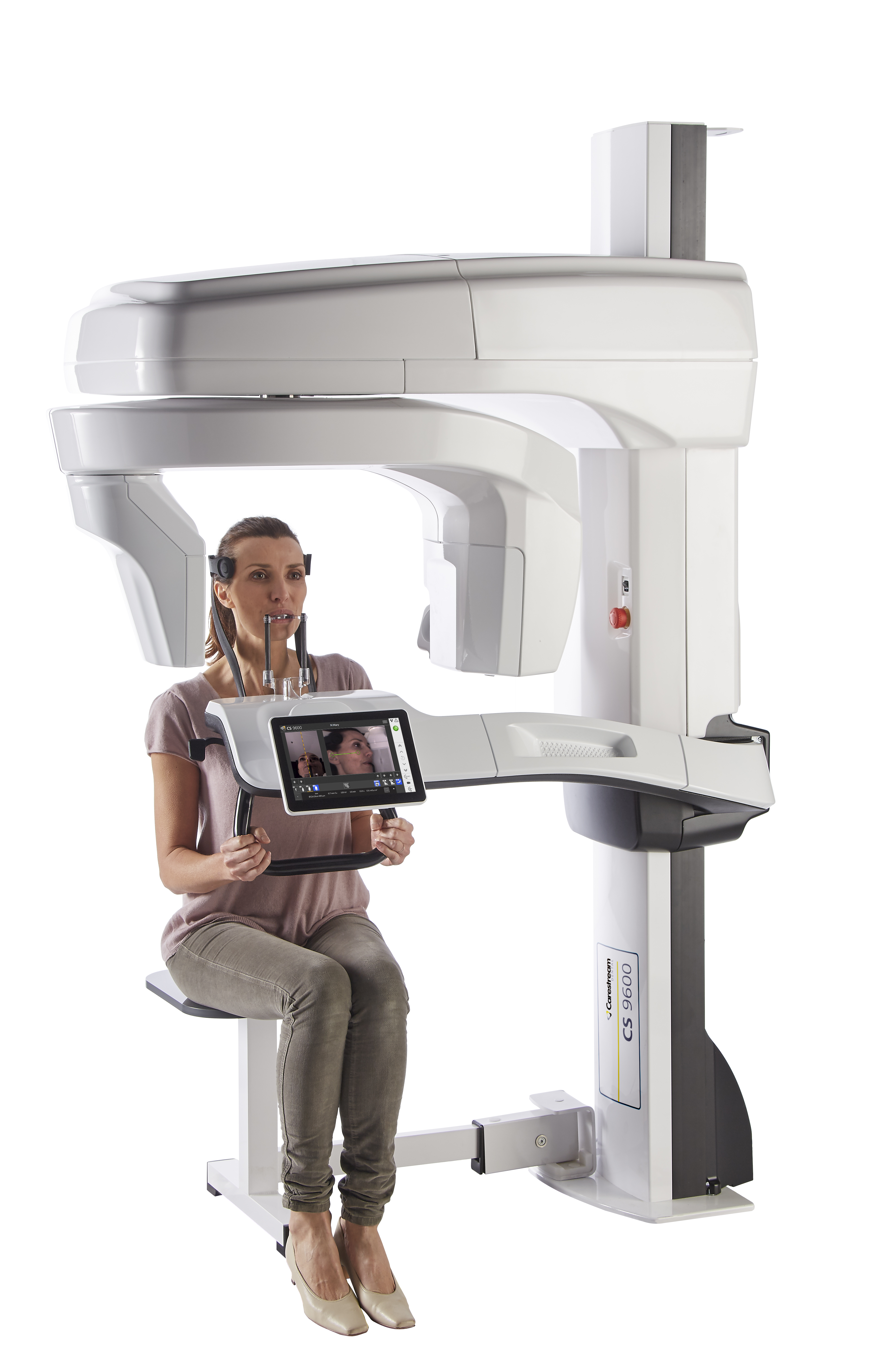

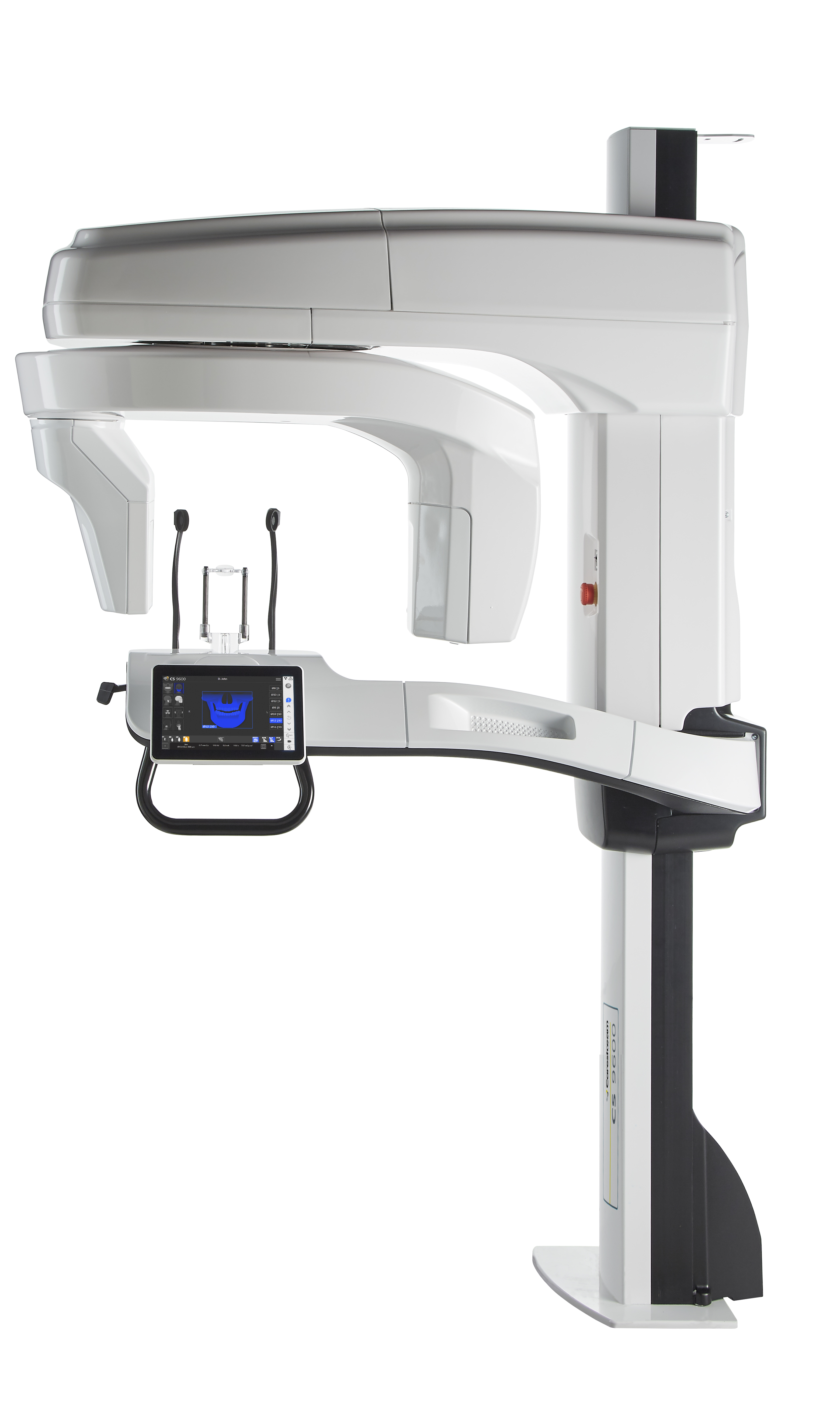

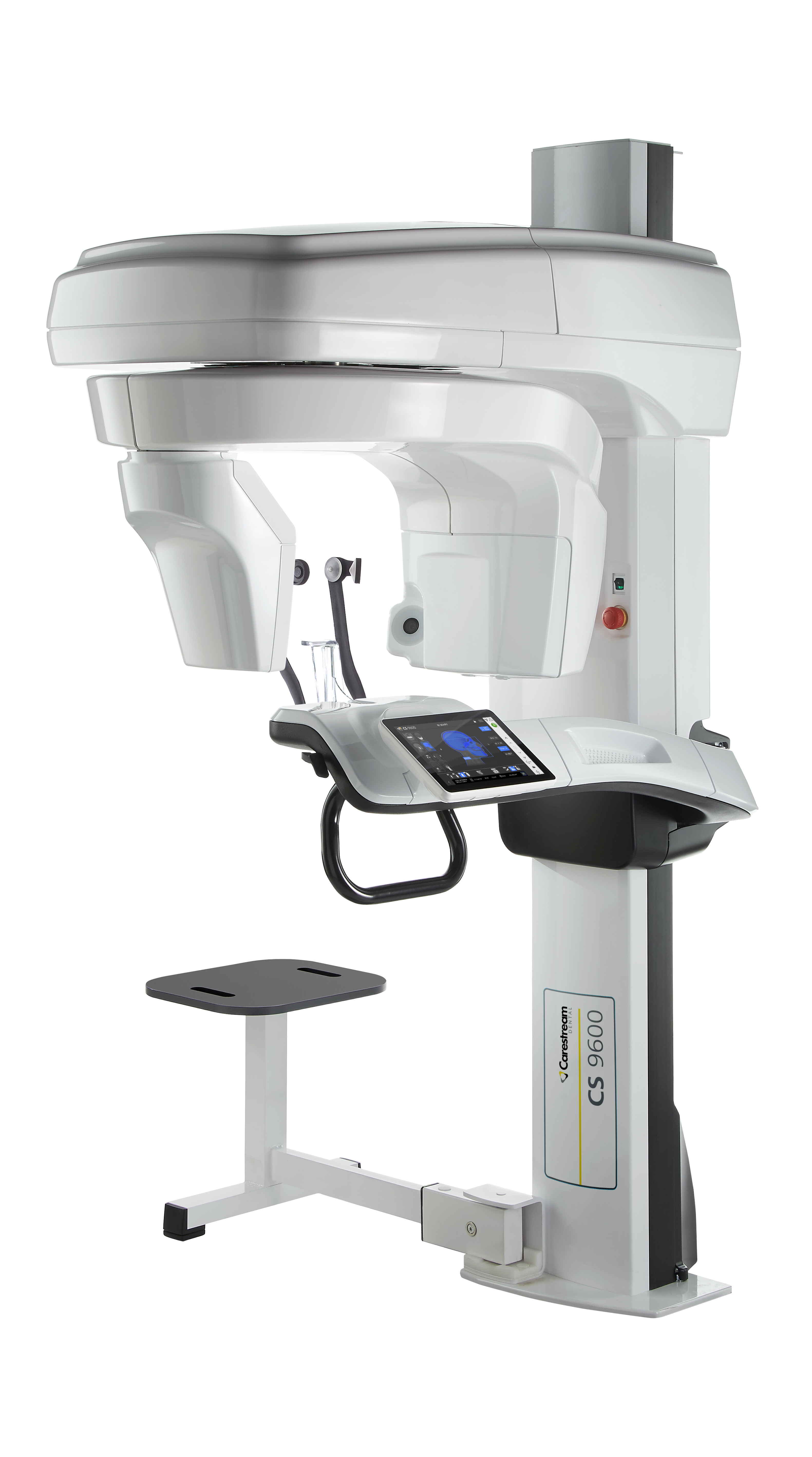

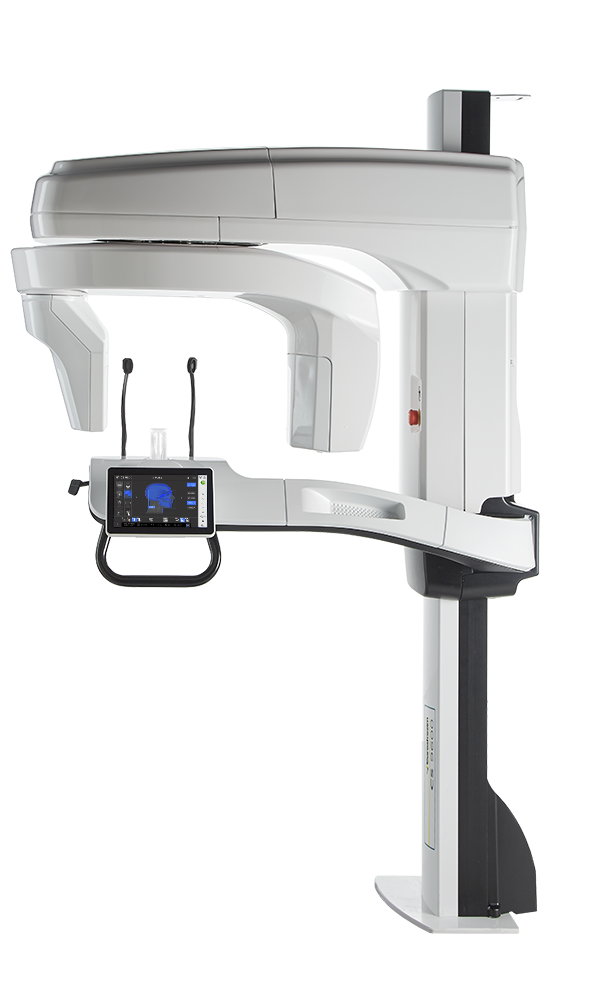

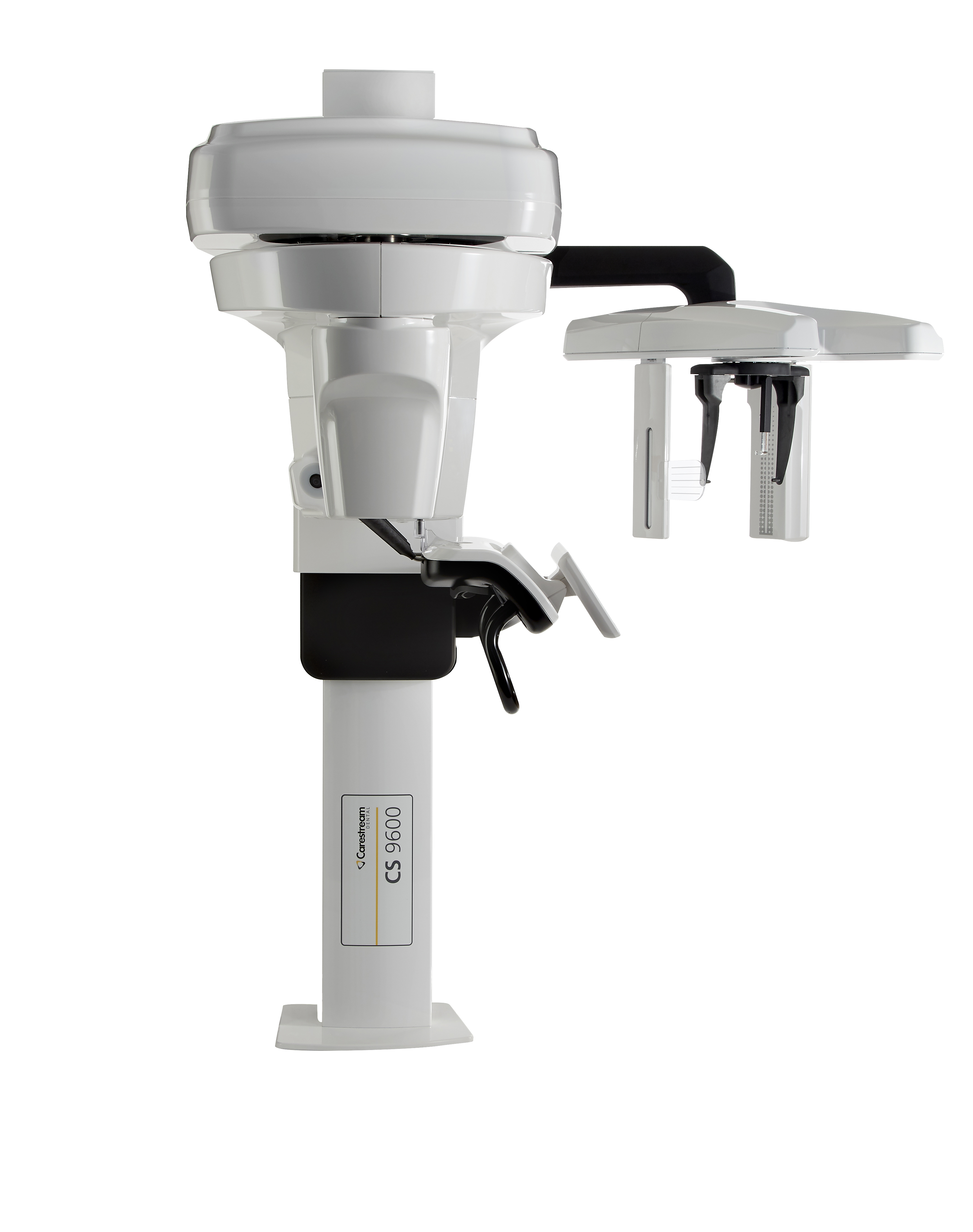

CS 9600 enables new levels of image quality, usability and, ultimately, precise diagnostic capabilities. The system features intelligent innovations and automated workflow technologies to ensure reliable patient positioning and reproducible image quality. And for a future the system can grow with your practice – thanks to upgradeable fields of view, versatile imaging options and added-value software. Features and benefits • Available in five upgradable versions – 8 x 8 cm, 16 x 10 cm, 16 x 17 cm – with a wide range of selectable fields of view that are ideal for examining the dental and maxillofacial region, as well as TMJ, sinus, ears, cervical spine joints and wrist joints • Patients are positioned using cameras, while live patient views are displayed on the touch-screen for easy and exact positioning • SmartAuto Pan and SmartAuto 3D analyze the patient morphology and density to automatically calculate the right exposure settings and trajectory, or to precisely define the field-of- view position • A sleek, modern touch screen and clear user interface guide you through the entire exam protocol and offer a new level of intuitive operation • CS MAR drastically reduces metal artifacts and even lets you explore images dynamically – with and without a filter – for more confident diagnosis • The 120-kV high-power imaging chain helps reduce artifacts and improve contrasts while reducing effective dose for CBCT exams • Capture realistic 3D facial photos with the optional CS Face Scan, and automatically superimpose the surface scan with CBCT images and 3D models Technical specifications 3D Modality Sensor CMOS Scan mode Continuous Exposure time 5.5 to 40 seconds (20 x 20 seconds) Field of view 4 x 4 / 5 x 5 / 5 x 8 / 6 x 6 / 8 x 5 / 8 x 8 / 10 x 5 / 10 x 10* / 12 x 5 / 12 x 10* / 16 x 6 / 16 x 10* / 16 x 12 / 16 x 17* *with tip of the volume Voxel size 75 - 400 µm Radiological exam options Tooth / teeth, full, upper or lower jaw, TMJ, Face, ENT, upper cervical spine, wrist Panoramic Modality Sensor CMOS Gray Scale 16384 – 14 bits Magnification 1.28 Exposure time 0.5 to 13 s Exposure mode 4 patient sizes: child, small adult, medium adult, large adult 3 dental arch morphologies: normal, square, sharp Radiological exam options Full panoramic, segmented panoramic, bitewing, maxillary sinus, lateral TMJ x 2, lateral TMJ x 4, Sinus AP/PA/Lateral, orthogonal panoramic X-Ray Generator and Other Specifications Tube voltage 60 – 90 kV / 60 – 120 kV (optional) Tube current 2 – 15 mA Frequency 140 kHz Tube focal spot 0.03 or 0.07 cm Total filtration >0.25 cm eq. Al Unit dimensions 128.4 (L) x 166.9 (D) x 252.6 (H) cm Required space 150 (L) x 200 (D) x 255 (H) cm (without optional seat or when seat installed on the left) 190 (L) x 200 (D) x 255 (H) cm (with optional seat installed on the right) Weight 463 lb
