Product Details

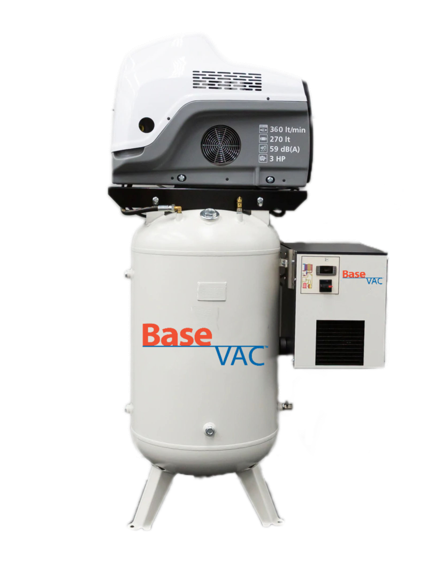

hp: 1 x 3 CFM: 10.6 @ 110 PSI Min/Max PSI: 100/ 130 PSI Tank: 70 Gal. Voltage/Amp: 220v 1 phase I 20A dBA: 59 Dimensions: L 26” x W 40” x H 73” Weight: 340 lbs Non-Latex Package Includes: • 3 hp Rotary Screw Compressor Head • Quiet operation 59 dB • Integrated Verticle Receiver • Integrated 5 Micron line filter • Integrated cycling refrigerated air dryer • 6’ length of 3/8” Flex Line hose Optional Parts: Buck Boost Part No: 2900603 External Air Inlet Part No: 2880132 Note: • Refrigerated air dryer runs on a separate power source (115v Outlet) • Room must be provided with active ventilation. • It’s recommended to allow 18” around and above the compressor for easy access service. • Room temperature should range 50 °F - 104 °F ( 10 °C - 40 °C). Site Requirements: Voltage Min/Max: 230v | 1 | 60Hz Full Load Amps: 20A Breaker Rating: 30 Amps Wire Size: 12 Watts / Hour: 5,173 BTU / Hour: 7,700 Install Footprint: L 36” x W 58” x H 91” Shipping Weight: 400 lbs
