Product Details

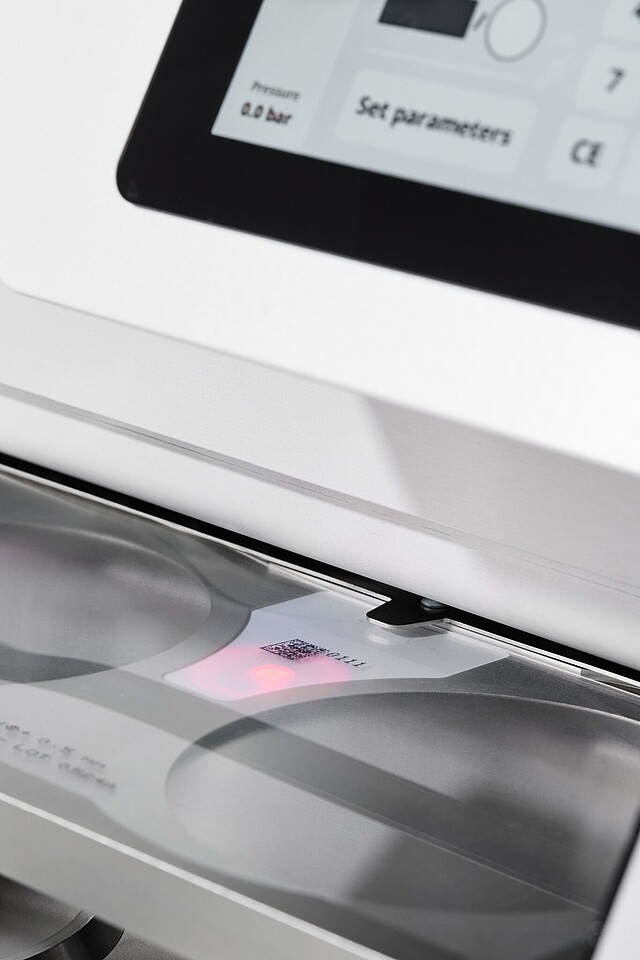

The BIOSTAR® 4-Aligner is a state-of-the-art thermoforming device. Its innovative technology allows up to 4 aligners to be thermoformed simultaneously, giving an impressive production capacity of 160 aligners per hour. Each aligner is moulded in its own pressure chamber at 4 bar. The BIOSTAR® 4-Aligner offers the flexibility of choosing from various SCHEU-DENTAL foil formats, including round foils with a diameter of 120-125 mm, and also rectangular strips (499 x 114 mm), only available from SCHEU-DENTAL, which enable simultaneous fabrication of four aligners. The device reaches its ideal working temperature within just a few seconds thanks to the unique thermally controlled infrared heater. All relevant parameters, such as heating and cooling time, can be accessed using a scanner or by entering a code. The colour display guides the user clearly through the individual steps of the thermoforming process. The BIOSTAR® 4-Aligner interface enables easy software updates, ensuring that the device is always up to date with the latest technology. Specifications Voltage/power: 1450 W Working pressure: 4 bar Dimensions (W x H x D): 612 x 337 x 524 mm Weight: 56 kg 3-year warranty, spare parts available for 10 years
