Product Details

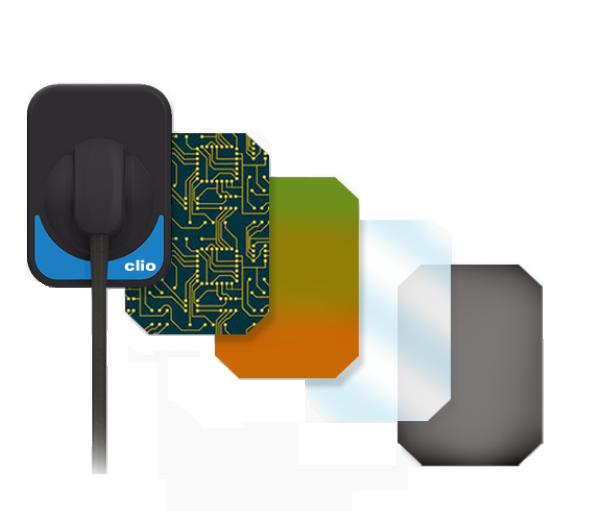

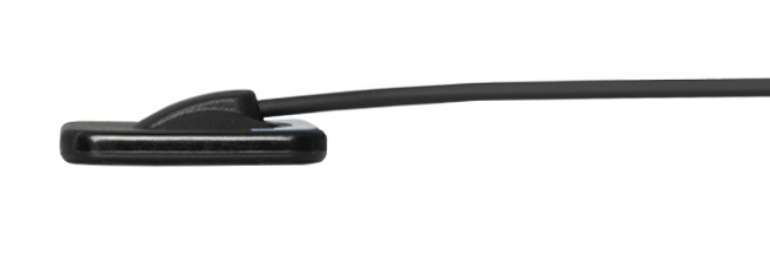

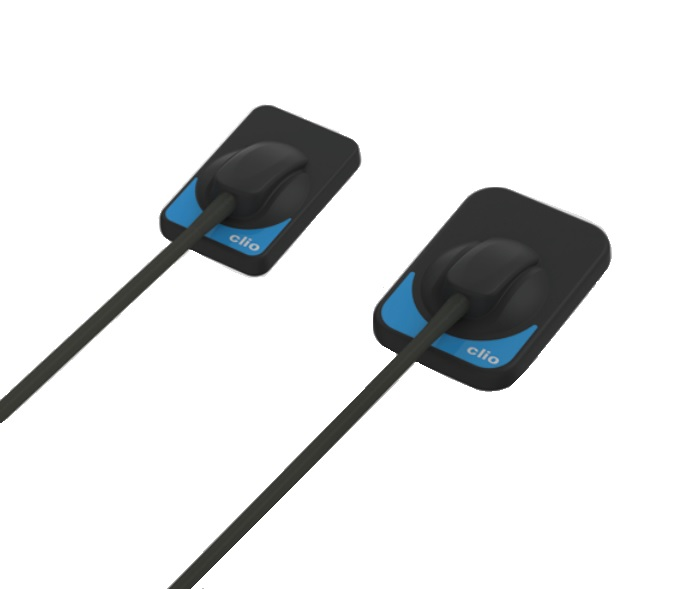

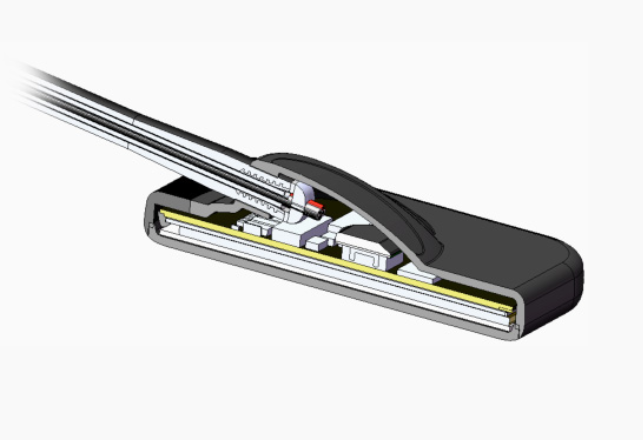

Clio Digital X-ray Sensors Specs & Warranty Includes: (1) Clio Sensor Size 1, (1) Clio Sensor Size 2, (1) RINN Holder Set, (50) Sample Sheaths), (1) License to Cliosoft Imaging Software Features: • All new Direct Integration Technology • Thin sensor hardware with rounded corners for maximum comfort • Direct USB cable with no docking station • Repairable USB cable for longevity of sensors • Fiber optic plate sensors for low-noise ratio • Largest active area for maximum coverage • Fully waterproof sensor head with sealed cable and housing design • USB connector: USB 2.0, USB 3.0 • Sensor Technology - Next Generation CMOS Fiber optic Sensors • Maximum Gray Levels - 4096 (12-bit) Clio X-ray Sensors Size 1 Sensor Size 2 Sensor External Dimensions: 24.35 x 36.73 mm 30.49 x 42.80 mm Active Area: 19.95 x 30.02 mm 25.99 x 36.02 mm Sensor Plate Thickness: 5.41 mm 5.41 mm Sensor Cable Length: 3 meters 3 meters Image Resolution: 26.3 lp/mm theoretical 26.3 lp/mm theoretical 20lp/mm actual 20lp/mm actual Image Size: 1580 x 1050 pixels 1896 x 1368 pixels Image Pixel Size : 19 x 19 microns 19 x 19 microns System Requirements: MINIMUM REQUIREMENTS RECOMMENDED REQUIREMENTS Windows XP, Windows Vista, Windows XP, Windows Vista, Windows 7, Windows 8 (32-bit and 64-bit), Windows 7, Windows 8 (32-bit and 64-bit), or Mac OS X or Mac OS X Imaging Software Options: SOTA Image, Imaging Software Options: SOTA Image, Dexis 9 and Dexis 10, Vixwin Platinum, Dexis 9 and Dexis 10, Vixwin Platinum, Eaglesoft, Kodak Dental Imaging, Sidexis, Eaglesoft, Kodak Dental Imaging, Sidexis, Apteryx, Tigerview, Adstra, and more Apteryx, Tigerview, Adstra, and more Intel Pentium IV 1.3 GHz or faster Intel Core2 Duo 1.5 GHz or faster 512 MB of RAM or more 2 GB RAM or more 50GB available disk space or more 50 GB available disk space or more 32-bit color, 1024x768 video card 32-bit color, 1024x768 video card Standard LCD Monitor with at least Standard LCD Monitor with at least 1024x768 resolution 1024x768 resolution Warranty: Complimentary with every Clio Digital X-ray Sensor purchase. • 5-Year Coverage Starting from the date of purchase, sensors that cannot be repaired and/or not covered under the 2-year manufacturer’s warranty are offered significant discount pricing. • 2-Year Coverage SOTA will repair or exchange parts or equipment due to manufacturer defect free of charge. Additional Details: All warranties start from date of purchase. Date of purchase is defined as the date on the original invoice. • Equipment failures due to manufacturer defect will be, at SOTA’s discretion, repaired or exchanged with replacement equipment of the same type free of charge during the first 2 years of the warranty. In addition, at any time during the first 5 years after purchase, the customer will be able to purchase replacement sensors or components of the same type at special significantly reduced pricing [contact SOTA Imaging for the current pricing details]. • Failures will be determined at SOTA Imaging. Evaluation results determine options for replacement or repair. • Free replacement or repaired equipment is under warranty for the remainder of the original equipment’s 2-year warranty or 90 days whichever is greater. • Equipment failure due to obvious equipment abuse, misuse, neglect or improper care, can, at the manufacturer’s discretion, modify the terms or duration of this manufacturer’s warranty.
