Product Details

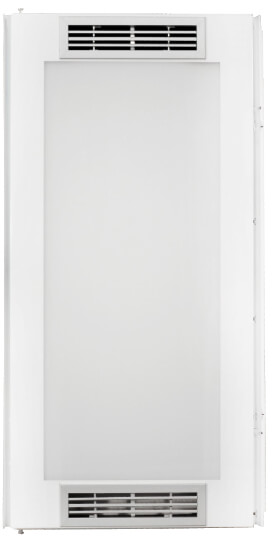

VidaShield UV24 is a fast, 24/7, active air purification system that uses UV-C to reduce bacteria and fungi from the air. This patented device is uniquely designed by combining an ultraviolet germicidal irradiation (UVGI) chamber and air circulating fans with an overhead ceiling light. No engineering controls are needed to operate VidaShield UV24. Simply wire it up, plug it in and you are on your way to treating the air. VidaShield UV24 reduces the levels of bacteria and fungi in treated air and reduces the settling of viable bacteria and fungi from treated air on surfaces. The innovative design allows for 24/7 operation in occupied spaces. The system can treat a volume of air equivalent to an 8’ x 10’ x 10’ room four times per hour. Conveniently installed in ceilings, VidaShield UV24 is an unobtrusive space saver. The VS02 is a patented 2 x 4 lighting troer with a UV-C air treatment system. The VS02 uses energy efficient LEDs to provide high efficiency area illumination.The VS02 draws in untreated air, pushes it through a highly reflective UV chamber with an ultraviolet light set at the wavelength of 253.7 nanometers which inactivates bacteria or fungi that passes over the lamp. Four fans continue to push the air through the unit at approximately 50 cfm. This allows the unit to treat the equivalent of one full volume of air from a typical 10 x 10 room with 8 ft. ceilings four times an hour. The system works 24/7/365. Features: • LED Panel • Fast, 24/7 active air purification • Patented device combines ultraviolet germicidal irradiation (UVGI) chamber and air circulating fans with an overhead ceiling light to reduce germs in the air • Innovative design can treat a volume of air equivalent to an 8’ x 10’ x 10’ room four times per hour • An unobtrusive space saver, this unit can easily be installed into standard 2’ x 4’drop ceilings • UV Lamps and filter is recommended to be changed annually Fixture Technical Specifications: -Dimensions: 24" wide x 48" long x 6" high (UV chamber included) -Weight: 42 lbs. -Wattage: 60 -Voltage: 110-277, 347v -Driver: 0-10 V Dimming -CRI: Greater than 80 CRI -Housing: 20 Gauge Steel with Antimicrobial Powder Coat Finish -Lens: Polycarbonate -LED Output: 7200 Lumens UV-C Chamber Technical Specifications: -Dimensions: 16” wide x 48" long x 2" high -UV-C Lamp: One 59w T5HO 22” Lamp with 15w of UV-C Output -Fan System: Ultra Quiet Air Circulation Fans -Volume: 50 CFM -Generator: Dedicated UV Ballast -Air Filter: MERV 6 High Air Flow Particle Filter -Light Block: Formed Baffles Prevent UV Light Leaks -Safety Lock: Switch Deactivates UV When Accessed
