Product Details

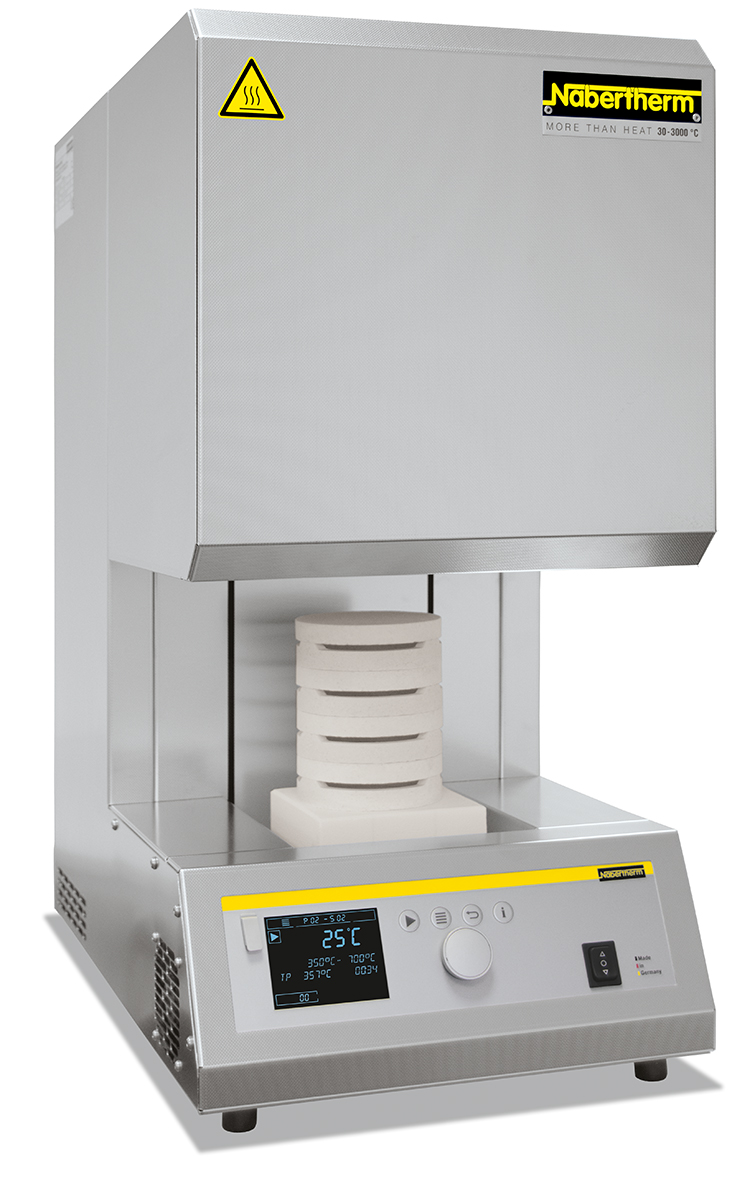

Due to their maximum temperature of 1650 °C and their large furnace chamber, the high-temperature bottom loading furnaces are perfectly suited for sintering translucent zirconia. The motor-driven lifting table significantly simplifies the charging of the high-temperature furnace. The all-around heating of the cylindrical furnace chamber ensures a very even temperature uniformity. The high-temperature bottom loading furnaces are additionally equipped with a drying as well as a forced cooling function. For residual drying, the oven remains open gapwise during heating up to a defined temperature and thus ensures reliable removal of moisture. For accelerated cooling, the furnace is automatically opened step by step under program control. Depending on the batch used and the saggars, these high-temperature furnaces can achieve total cycle times of less than two and a half hours. The furnaces can be individually programmed for all recommended sintering curves of all zirconia manufacturers. Tmax 1650 °C Furnace chamber with a volume of 1 or 2 liters, table with large floor space High-quality heating elements made of molybdenum disilicide offer very good protection against chemical interaction between charge and heating elements Appealing, double-walled stainless steel housing Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP) Outstanding temperature uniformity due to all-round furnace chamber heating Scope of delivery includes a starter set for charging on one level, additional levels as additional equipment Precise, motorized toothed belt drive of the table with button operation Forced cooling function with automatic, step-by-step opening from a preset temperature Exhaust air vent in the roof Type S thermocouple Controller P480 with memory for 50 programs, 2 sample programs Usable for sintering blanks of all leading manufacturers Drying function: When starting the program the table will be driven in drying position and closes automatically at 500 °C Defined application within the constraints of the operating instructions NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive TECHNICAL SPECIFICATIONS Tmax (°C): 1650 Inner dimensions in mm: W - 185 D - 180 H - 185 Volume (in l): 2 Maximum (units): 75 Outer dimensions in mm¹: W - 390 D - 590 H - 765 Connected (load kW): 3.4 Electrical (connection*): 1-phase Weight (in kg): 50 Minutes (to Tmax): 75 *These furnaces are available for main voltage of 200 V, 208 V, 220 V - 240 V, 1/N/PE or 2/PE ¹ External dimensions vary when furnace is equipped with additional equipment. Dimensions on request.
